Document Design and Components

What is a document design?

A Livingdocs design is a set of HTML components (templates) and configurations how they can be used and edited inside of the Livigndocs editor. It also lists the CSS and/or Javascript dependencies that need to be loaded to render documents correctly, both in the editor and when rendering it on the server side.

The boilerplate server has an embedded design. The entry point for your project config is in “setup/seeding.js”. This file requires a complete project config that also contains the two relevant design configs design_settings.js and the components folder.

Good to know: you might come across the notion of a “reference design”. Reference designs are basically the same as embedded designs, but live externally, e.g. on an S3 bucket and are referenced in a project. The downside of reference designs is that they can not be customized in the context of a single project.

Hands-on: add a new component

Lets add a new component to our boilerplate design. We want a header consisting of a title and an image that can be used in the content-type article.

First navigate to your components folder and create a new file header.js with the following content.

const dedent = require('dedent')

module.exports = {
  name: 'header',
  label: 'Header',
  iconUrl: '',
  directives: [{
    name: 'image',
    type: 'image',
    imageRatios: ['16:9', '4:3']
  html: dedent`
    <h2 doc-editable="title">

Lets recap what we have.

Every component defines a name to reference it in the system, a label and iconUrl for display and an html containing the markup.

The HTML itself contains declarative directives that are prepended with doc-, in our example doc-editable and doc-image (learn all about directives). Those tell the Livingdocs editor where the users can edit content.

The directives themselves can contain configuration, referenced in the directives property. In our example we tell the Livingdocs editor that we want to give the image preset ratios of ‘16:9’ and ‘4:3’.

To get the component displayed in the editor you need to do 3 more things:

  • add require('./components/header') in boilerplate_config.js next to the other components
  • add the name header to the array of components under the group textin design_settings.js
  • add name: 'header' to the list of components in article.js (our target content-type)

(Note that we used the name property, i.e. header when referencing the component in other config files)

Now that everything is ready, we can restart the server to apply our changes. Upon starting you should see a line like this on the command-line:

16:31:12 INFO  li-tasks/setupProjects > Updated - project 'boilerplate': 1 patch applied (revisionNumber: 2)

This indicates that the project config was successfully updated. If you have an error in this line there is probably a typo somewhere.

Now, create a new article and you should have a Header component in the sidebar to drag in. Beautiful!

Git patch for those changes

Configure default content

Now that we have a new component we want to add it to newly created articles by default. And since it is a header we want to pin it so editors can not accidentally delete it.

Navigate to the content-type file article.js and add the following JSON just after components.

  defaultContent: [{
    identifier: 'header',
    position: 'fixed'
  }, {
    identifier: 'paragraph'

Again, restart your server. In case of success you will see a line on the CLI like this:

16:57:10 INFO  li-tasks/setupProjects > Updated - project 'boilerplate': 1 patch applied (revisionNumber: 3)

Create a new article in the editor. It should have an empty header followed by an empty paragraph in it by default and when you select the header, the property panel reads “This component is pinned to its position.” and there is no delete option.

Git patch for those changes

Make a change over the UI

So far, we’ve changed the configuration files by hand. Livingdocs provides extensive user interfaces to edit the project configuration directly from the browser. Let’s do this next, to make our “Header” component the first component in the list.

In the main navigation (burger menu) navigate to “Project Setup” and there in the side menu to “Component Library”. You should see your “Header” component at the bottom of the “Text” group. Drag the “Header” component with the drag handler to the top position.

Rearrange component

You will also see that on the top right a new button “Prepare Publication” appeared. Click it.

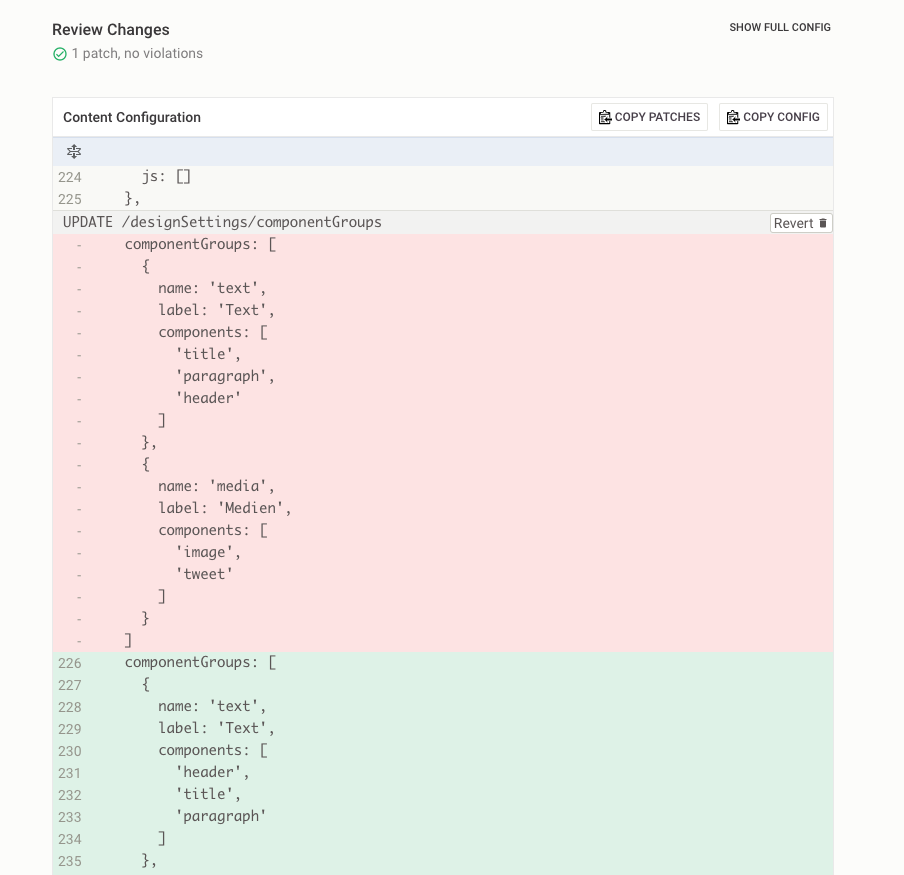

Publish Config

This is the publication screen for your project config. Every change is shown in a diff view where you can review your changes. This is the same JSON that you edited manually in the boilerplate before.

If you’re fine with your changes, scroll to the bottom and click “Publish Changes”. Navigate to any article and in the “Insert” sidebar the header will now be in first place.

Congratulations, you’ve taken your first steps in a Livingdocs Design! To learn more about designs, refer to the design reference documentation.
