To get an overview about new functionality, read the Release Notes. To learn about the necessary actions to update Livingdocs to release-2024-11, read on.

Attention: If you skipped one or more releases, please also check the release-notes of the skipped ones.

Webinar

• Feature Webinar Recording | Passcode: N0Z$qqxh
• Feature Webinar Documentation
• Dev Webinar Recording | Passcode: QzP1F&Ar
• Dev Webinar Slides
• Release Newsletter Subscription

System Requirements

Suggested

Minimal

Deployment

Before the deployment

No prior preparations (besides running livingdocs-server migrate up) are required before rolling out this release.

After the deployment

Related to migration of document_metadata table to document_revisions table. If the upgrade succeeded and it’s definitive that you won’t need to roll back (a few days), it’s best to migrate all data to the new structure. To do that you can execute the command below. Please make sure you have a few gigabytes of storage available in postgres before executing that command. It will rewrite all metadata and will probably take a while.

node db/manual-migrations/011-move-revision-metadata.js

After executing this script, the document_metadata table will get truncated and clean up storage. We’ve tested the script against a database with 4'300'000 revision entries and it took ~7 minutes.

There’s no need to reindex Elasticsearch, as there are no structural changes.

Rollback

Only rollback if you have a critical issue with the release in question. Usually forward patching is the better option.

If you need to rollback the release, you can do so by running the following command on the Livingdocs Server running the new release:

livingdocs-server migrate down

If you rollback, data that was already upgraded to new schema (document_metadata -> document_revisions) will take a bit longer to migrate as it needs to scan the whole table, but this is lock-free for reads, it will only block data that got updated after the deployment.

Breaking Changes 🔥

Migrate the Postgres Database 🔥

It’s a simple/fast migration with no expected data losses.

# run `livingdocs-server migrate up` to update to the newest database schema
# migration 202-metadata-on-revisions.js
#   creates a new column `metadata` on `document_revisions` table
#   requires manual migration to migrate all data from `document_metadata` to `document_revisions`
# migration 203-li-unique-id.js
#   creates a new table `document_unique_ids` to store unique ids and ensure its uniqueness
livingdocs-server migrate up

document_metadata table migration to document_revisions 🔥

We have moved the document_metadata table to the document_revisions table to support better migrations and cleanup operations. The migration is done automatically when you run livingdocs-server migrate up.

If you query the documents and metadata using sql yourself, this will affect you. Please use COALESCE(document_revisions.metadata, document_metadata.data) to get the correct value.

We will remove the document_metadata table in a future release. Writes against document_metadata table are now blocked and metadata is now directly persisted on document_revisions.metadata.

After a successful deployment, saves against existing documents will use the new column and writes from old processes are forbidden as the schema changed.

The existing columns won’t be touched within the migration, so the migration can execute quick.

A rollback of already upgraded data takes a bit longer as it needs to scan the whole table, but this is lock-free for reads, it will only block data that got updated after the deployment.

After the upgrade succeeded and it’s definitive that you won’t need to roll back (a few days), it’s best to migrate all data to the new structure. To do that you can execute the command below. Please make sure you have a few gigabytes of storage available in postgres before executing that command. It will rewrite all metadata probably takes a while. We’ve tested the script against a database with 4'300'000 revision entries and it took ~7 minutes. After executing that script, the document_metadata table will get truncated and clean up storage.

node db/manual-migrations/011-move-revision-metadata.js

Stricter Document Command API insertComponent Validation 🔥

We have made the validation of the insertComponent command stricter. Previously, any component available in the design could be inserted into a document with the insertComponent command, even if it wasn’t configured in the content type. Now, only components configured in the content type can be inserted, and attempting to insert an unconfigured component will result in a validation error.

Move appConfig.textcount editor configuration 🔥

appConfig.textcount configuration has been moved to projectConfig.editorSettings.textCount. If you still want to use this feature please migrate to projectConfig.editorSettings.textCount. Be careful, the textCount configuration needs to be written in camelCase in the new location.

Deprecations

Desk-net Integrations ⚠️

Desk-Net announced its rebranding to Kordiam. To align with this change, Livingdocs now calls their new API endpoint kordiam.app by default. We also added new Kordiam integrations and deprecated existing Desk-Net integrations, which will be removed in release-2025-05.

• Feature li-desknet, including all its server APIs
• Feature li-desknet-integration, including all its server APIs
• Server config desknet, integrations.desknet, and integrations.desknet.forceLinkUsingDesknetApiRequest
• Server config hugo.print.desknetMetadataFields as well as its default values
• Project config settings.desknet, settings.integrations.desknet, and contentTypes.[*].desknet
• Public API endpoints /api/v1/desknet/*
• Public API endpoints /api/v1/desknet-integration/*
• Function parameter desknetApi of Desk-Net/Kordiam functions
• Desknet property in the channel return object of projectApi.getProject()
• Desknet property in the return object of systemApi.config()
• Metadata plugin li-desknet-global
• Metadata plugin li-desknet-integration
• Metadata plugin li-desknet-schedule
• Config property desknetExternalElementIdMetadataPath of metadata plugin li-desknet-schedule

For instructions on how to migrate, please refer to our Desk-Net to Kordiam migration guide.

contentTypes in li-document-search ⚠️

The shorthand property config.contentTypes in the li-document-search metadata plugin is deprecated and replaced with config.contentType which can be a string or an array of strings. This is done to make it consistent with the shorthand syntax in other places. config.contentTypes will be supported until release-2025-05.

Backwards compatibility will take config.contentType if defined: config.contentType || config.contentTypes. Please migrate your existing configuration from config.contentTypes to config.contentType.

{
  handle: 'search',
  type: 'li-document-search',
  config: {
    // contentTypes: ['article', 'page']
    contentType: ['article', 'page']
  }
}

Menu Tool ⚠️

The Menu Tool is deprecated and will be removed in release-2025-05. Please migrate your menus to data records, using the li-tree plugin and, if needed, the li-unique-id metadata plugin. For detailed instructions on setting up menus with data records, refer to our guide. We are here to assist with the migration as needed.

Features

Teaser Components 🎁

The new li-teaser plugin for includes facilitates flexible page management by allowing users to establish rule based links from teasers to documents. Teasers can be configured to use direct references, curated lists, or algorithm-driven selections, supporting a mix of static and dynamic teasers.

This plugin already covers many of the technical necessities out of the box, such as document preloading and deduplication.

Since page management is a complex topic, we encourage you to get in touch with us, so we can figure out how your use case fits into frame and which migration paths exist.

Document Print Flows 🎁

Document Print Flows provide a flexible way to create print copies of web documents. They are configured in a similar way to Document Copy Flows, with the server functions handling most of the logic. The main difference is that there is a 1:1 relationship between a print and web document, and they use a different UI to initiate the copy. There are also additional indicators within the UI to show the status of the linked document. For help with configuring the Document Print Flows feature please see the guide.

Task Screens 🎁

To be able to better support task workflows, especially proofreading flows, we introduce a new way of displaying tasks on the basis of table dashboards. The most relevant information are emphasised and shown in an easy-to-grasp, clean way. By moving away from the task state lanes, we gain more space and make the most important tasks easier accessible.

The configuration of task screens is similar to that of table dashboards, but the task screen configs are defined within projectConfig.editorSettings.taskScreens. The screen configs use many of the same properties, but they have a required task property which should reference an li-task-v2 metadata property handle. There is also an additionalMetadataProperties property which accepts an array of metadata handles. This will add columns after the default columns, which can be used as a simple way to extend what is displayed on the screen without having to define the whole columns array.

{
  editorSettings: {
    taskScreens: [
      {
        handle: 'proofreading',
        pageTitle: 'Proofreading',
        task: 'proofreading',
        baseFilters: [{key: 'contentType', term: 'regular'}],
        displayFilters: ['timeRange', {metadataPropertyName: 'proofreading'}],
        // columns: [], // Used to replace the default columns
        additionalMetadataProperties: ['effort', 'importance'],
        search: {}
      }
    ]
  }
}

There is also a new li-task-v2 display filter which can be configured anywhere that document display filters are supported, including for task screens:

displayFilters: [
  {metadataPropertyName: 'proofreading'}
]

Also, to add a link to a task screen in the main navigation you can use the new taskScreen property in a custom main navigation item:

{
  editorSettings: {
    mainNavigation: [
      {
        handle: 'proofreading',
        taskScreen: 'proofreading',
        label: 'Proofreading',
        icon: 'clipboard-check'
      }
    ]
  }
}

Task Modes 🎁

We are making several enhancements to the li-task-v2 metadata plugin, with the main highlight being the introduction of task modes.

• Task Modes allow users to select how they approach a task. For instance, in the context of proofreading, task modes can reflect the level of rigor applied when reviewing an article. A mode can be chosen when a task is accepted or finished, and it is also shown in the task icon.
  Task modes can be defined in the metadata plugin configuration. Once configured, selecting a mode becomes mandatory for every newly created task. Modes are displayed in the order they are defined, with the first mode being the default.

{
  handle: 'proofreading',
  type: 'li-task-v2',
  config: {
    modes: [
      {
        handle: 'thorough',
        label: 'Thorough',
        icon: 'glasses'
      },
      {
        handle: 'superficial',
        label: 'Superficial',
        icon: 'speedometer'
      }
    ]
  },
  ...
}

Further enhancements to the li-task-v2 metadata plugin include:

• Deadline Presets: These are hardcoded options that enable users to quickly choose a deadline without manually adjusting the input field. The presets are: “+1 hour”, “+2 hours”, “+24 hours”.
• Setting a Deadline: When requesting a task, it is no longer necessary to confirm the deadline before proceeding. Previously, users had to click both “Set deadline” and “Request task”, leading some to forget the second step. This update streamlines the process by removing the “Set deadline” button.
• High Priority: The high priority button has been relocated from the action menu to the task card header for better visibility.

Document Command API: New Commands 🎁

We have extended the Document Command API with five new commands, which are also available for Assistants.

Each command supports an optional oldValue parameter. When specified, the system verifies that the value being updated matches the provided oldValue. This prevents accidental overwrites that might occur due to changes made between reading a document and issuing the command. If the oldValue does not match, a conflict error is thrown.

setComponentCondition

The setComponentCondition command updates a component condition. Currently, only conditions of type dateTime are supported.

{
  operation: 'setComponentCondition',
  componentId: 'doc-123',
  conditionName: 'dateTime',
  value: {
    gte: '2025-01-01T10:30:00.000Z',
    lt: '2025-02-02T14:30:00.000Z'
  },
  oldValue: {
    gte: '2024-01-01T10:30:00.000Z',
    lt: '2024-02-02T14:30:00.000Z'
  }
}

setComponentStyle

The setComponentStyle command updates a component style. It supports all types: style, option, and select.

{
  operation: 'setComponentStyle',
  componentId: 'doc-123',
  propertyName: 'background',
  value: '#1fc47a',
  oldValue: '#000'
}

setStyleDirective

The setStyleDirective command updates a style directive. It supports all types: style, option, and select.

{
  operation: 'setStyleDirective',
  componentId: 'doc-123',
  directiveName: 'appearance',
  propertyName: 'background',
  value: '#1fc47a',
  oldValue: '#000'
}

setLinkDirective

The setLinkDirective command updates a link directive.

{
  operation: 'setLinkDirective',
  componentId: 'doc-123',
  directiveName: 'link',
  value: {
    href: 'https://livingdocs.io/article/123',
    target: '_blank',
    $ref: 'document',
    reference: {id: '123'}
  },
  oldValue: {
    href: 'https://livingdocs.io/'
  }
}

setIncludeDirective

The setIncludeDirective command updates an include directive. It supports both include params and overrides. These properties depend on each other: if only params are provided, any existing overrides are removed. Conversely, specifying overrides without params is invalid and will return a validation error. To update overrides, both the params and overrides properties must be provided.

{
  operation: 'setIncludeDirective',
  componentId: 'doc-123',
  directiveName: 'related-article',
  value: {
    params: {
      teaser: {
        $ref: 'document',
        reference: {id: '3'}
      },
    },
    overrides: [{
      id: 'teaser-normal-3',
      content: {
        link: {href: 'https://livingdocs.io'},
        title: 'Changed title',
      },
      originalSnapshot: {...},
      contentProperties: [...]
    }]
  },
  oldValue: null
}

Assistants: Component Trigger 🎁

We are adding assistant buttons to components. These enable users to trigger an assistant directly on a focused component. If two or more assistants are registered a k-menu will be opened only with the available assistants on this focused component. Assistants which are registered on a focused component are not shown in the normal k-menu.

To configure this add the focusedComponentName to the showAssistantTriggerButton config:

liServer.registerAssistant({
  handle: 'exampleAssistant',
  ...,
  showAssistantTriggerButton: {
    focusedComponentName: 'exampleName' // component handle
  },
  contextConditions: {
    documentRequired: true,
    contentTypes: []
  },

  async assist ({context}) {
    ...
  }
})

Assistants: Error messages 🎁

To further improve the Assistants we are adding two ways to return custom error messages. This helps to better inform the user on why an assistant couldn’t fullfil its task.

In the assist function either an error object can be returned in the response:

{
  error: {
    translatedMessage: {
      de: 'Etwas ist falsch gelaufen',
      en: 'Something went wrong'
    }
  },
  commands: []
}

Or a validationError can be thrown:

throw validationError({translatedMessage: {
  en: 'Something went wrong',
  de: 'Etwas ist schief gelaufen'
}})

li-unique-id Metadata Plugin 🎁

The new li-unique-id metadata plugin is ideal for managing user-defined IDs or handles where uniqueness among values is required. The user interface is similar to an li-text field, but it includes additional validation properties:

• Uniqueness: Ensures uniqueness among values within the same scope per project.
• Format: Enforces the accepted input format using a regular expression.
• Required: Ensures that a value is provided.

For more information on how to configure it, please refer to the li-unique-id plugin page. Also, check out our guide on how to set up a menu content type using li-unique-id.

Enhanced componentDirectivesPrefilling 🎁

There’s an extension on mediaType.editorSettings.mediaLibrary.componentDirectivesPrefilling. It supports now an entry with type: 'template'.

Placeholders in templates get replaced by the specific metadata properties if they are present and not empty. If a placeholder contains a property that’s empty, it will move on to the next prefilling.

That way we can define fallbacks.

  componentDirectivesPrefilling: [
    {
      type: 'template',
      template: '{{ metadata.photographer }} / {{ metadata.credit }} ©️',
      directiveName: 'source'
    },
    {
      type: 'template',
      template: '{{ metadata.photographer }} ©️',
      directiveName: 'source'
    },
    {
      type: 'template',
      template: '{{ metadata.credit }} ©️',
      directiveName: 'source'
    },
    {
      metadataPropertyName: 'description',
      directiveName: 'caption'
    }
  ]

Thus, the two entries below have the same behavior:

  componentDirectivesPrefilling: [
    {
      type: 'template',
      template: '{{ metadata.description }}',
      directiveName: 'caption'
    },
    {
      metadataPropertyName: 'description',
      directiveName: 'caption'
    }
  ]

This behaviour has been backported to September (@livingdocs/server@257.0.6 and @livingdocs/editor@110.34.25) and July (@livingdocs/server@254.0.34 and @livingdocs/editor@110.21.55) releases.

Kordiam Integrations 🎁

We added new Kordiam integrations (including settings, metadata plugins, and APIs) to replace existing Desk-Net integrations. Check out the deprecation notice above for details on how to migrate.

Video Source Policy 🎁

The videoSourcePolicy sits alongside the existing imageSourcePolicy configuration. It only supports the ‘upload’ provider and can be used to disable uploads globally (including the media library video dashboard) when added to the project config settings, or per content type when added to a content type config. The videoSourcePolicy within a content type config has priority over the project config.

You can disable the upload provider for videos by setting enabled to false:

{
  settings: {
    handle: 'my-project',
    // ...
    // imageSourcePolicy: [],
    videoSourcePolicy: [
      {
        provider: 'upload',
        enabled: false
      }
    ]
  },
  contentTypes: [
    {
      handle: 'regular',
      // ...
      // imageSourcePolicy: [],
      videoSourcePolicy: [
        {
          provider: 'upload',
          enabled: false
        }
      ]
    }
  ]
}

Webhooks: User Actor Info 🎁

We are adding a config to send more information about users in webhook payloads. External systems can leverage this to understand who triggered an action. If enabled the name and email for user actors are included in the payload. We do not recommend enabling this configuration unless your external systems require it.

webhooks: {
  active: true,
  configurations: [
    {
      active: true,
      exposeUserActor: true,
      ...
    }
  ]
}

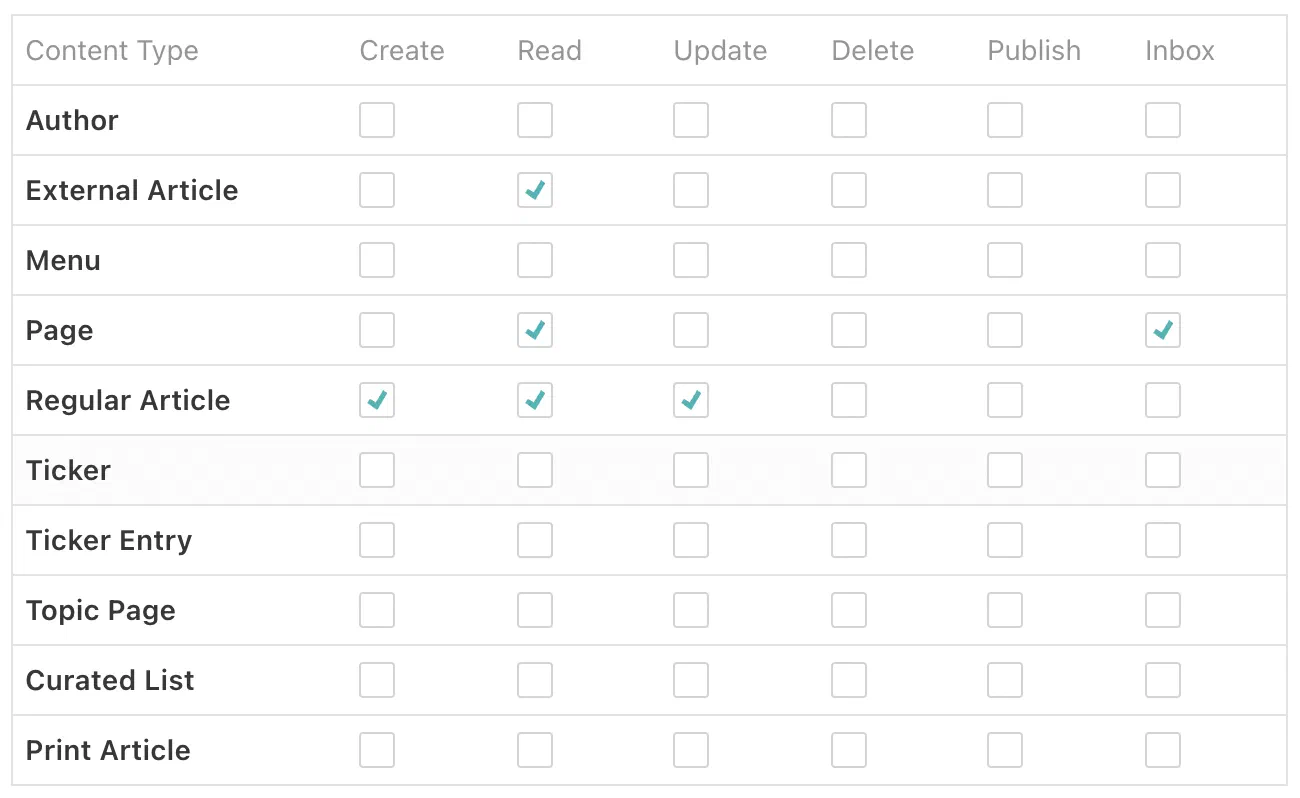

inboxWrite access right 🎁

We are introducing an new inbox permission. This enables users to send contentTypes to the inbox without having write access for them. Users then need read and inbox access on the contentType to be able to search inboxes (read) and send something into the inbox (inbox). Setting the update permission contains the inbox permission.

No permission will automatically be granted. So make sure to enable the permission for relevant groups.

Support for DefaultAzureCredential in Azure Blob Storage 🎁

We have introduced support for DefaultAzureCredential when using Azure Blob Storage. This feature simplifies authentication by enabling the automatic retrieval of credentials from the environment without explicitly specifying them in the code or server configuration.

The new implementation leverages Azure’s DefaultAzureCredential mechanism to automatically select the most appropriate authentication method based on the available environment. It checks for various identity sources in a predefined order (such as environment variables, workload identity, managed identity, or Azure CLI credentials).

Authentication Flow: defaultProvider() will attemp to authenticate via the following mechanisms in the specified order:

• Environment Variables (e.g., AZURE_CLIENT_ID, AZURE_TENANT_ID, AZURE_CLIENT_SECRET)
• Workload Identity for services deployed to AKS
• Azure Managed Identity for services deployed to an Azure host
• Azure CLI (for local development)
• Azure PowerShell (for local development)
• Azure Developer CLI (for local development)

Simplified Configuration: With this feature, developers no longer need to manually handle or switch between authentication mechanisms in different environments, as defaultProvider() automatically handles credentials across development, test, and production environments without changes to code or configuration.

If you are going to use this authentication method please make sure that your environment is properly set up with at least one of the supported authentication sources. We recommend using Azure CLI for local development and Managed Identity or Workload Identity (on AKS) for production environments.

To enable this authentication method follow the Azure Blob Storage configuration:

{
  storage: {
    strategy: 'azure-blob-storage',
    config: {
      storageAccountName: 'storage-account-name',
      // Do not define sasToken when using DefaultAzureCredential
      containerName: 'container-name',
    }
  }
}

Vulnerability Patches

We are constantly patching module vulnerabilities for the Livingdocs Server and Livingdocs Editor as module fixes are available. Below is a list of all patched vulnerabilities included in the release.

Livingdocs Server

This release we have patched the following vulnerabilities in the Livingdocs Server:

• CVE-2024-45813 patched in find-my-way v8.2.2
• CVE-2024-47764 patched in cookie v0.7.0

No known vulnerabilities. 🎉

Livingdocs Editor

This release we have patched the following vulnerabilities in the Livingdocs Editor:

• CVE-2024-45296 patched in path-to-regexp v6.3.0
• CVE-2024-45813 patched in find-my-way v8.2.2
• CVE-2024-47764 patched in cookie v0.7.0

We are aware of the following vulnerabilities in the Livingdocs Editor:

• CVE-2023-44270 vulnerability in postcss, it affects linters using PostCSS to parse external Cascading Style Sheets (CSS). It is not exploitable in the editor as we don’t load untrusted external CSS at build time.
• CVE-2023-26116, CVE-2023-26118, CVE-2023-26117, CVE-2022-25869, CVE-2022-25844 are all AngularJS vulnerabilities that don’t have a patch available. We are working on removing all AngularJS from our code and vulnerabilities will go away when we complete the transition to Vue.js.

Patches

Here is a list of all patches after the release has been announced.

Livingdocs Server Patches

• v261.3.17: fix(print-flows): Load correct source document revision ids
• v261.3.16: fix(access-control): Run accessControl.canUnpublish when executing a publish control ‘unpublish’ command
• v261.3.15: fix(publication): Compute event before modifying document
• v261.3.14: fix(indexing): Only index documentId for copySource on publications
• v261.3.13: chore(notifications): Remove an unnecessary uncached project config request when sending notifications
• v261.3.12: chore: Regenerate package-lock.json as there were install errors with fsevents
• v261.3.11: fix(print-flows): Require contentType in print function result
• v261.3.10: fix(deps): update dependency @livingdocs/framework from 31.0.1 to v31.0.2
• v261.3.9: fix(kordiam): Unlink Kordiam publication if the story gets deleted
• v261.3.8: fix(designs): Fix error when server config designs is not set
• v261.3.7: fix(kordiam): Restore support for forceLinkUsingDesknetApiRequest setting
• v261.3.6: fix(document-inbox): Send to inbox with update permission
• v261.3.5: fix(release-2024-11): Define release-2024-11 as channel for npm
• v261.3.4: fix: Postpone release-2024-11 dashboard breaking changes to release-2025-01
• v261.3.3: fix(breaking-changes): Add type to release-2024-09 breaking change
• v261.3.2: fix(release-2024-11): Update framework to v31.0.1 (release-2024-11 tag)

Livingdocs Editor Patches

• v111.1.43: fix(li-schema-form): don’t do delayed focus clearing after refocused

• v111.1.42: fix: useUndoRedo() check workspace before history operations

• v111.1.41: fix(dashboards): Do not persist filters when navigating between dashboards

• v111.1.40: fix(document-proxy): Only add numbers to userIds

• v111.1.39: fix(project-config): Do not throw an error on the project config screen when kordiam is enabled

• v111.1.38: fix(info-panel): Be more specific when excluding ticker links

• v111.1.37: fix(li-meta-tree): allow publications when config.document.published is false

• v111.1.36: fix(editor): Keep search in memory in document dashboard side panel

• v111.1.35: fix(floating panel): Position

• v111.1.34: chore(tasks): Use normalised task screen config for task board

• v111.1.33: fix(npm): Remove devDependencies from package.json and npm-shrinkwrap.json before publishing the package

• v111.1.32: fix: Regenerate package-lock.json as there were install errors with fsevents

• v111.1.31: fix(chrome): Disable automatic translations of the editor UI and content within the document

• v111.1.30: fix(deps): update dependency @livingdocs/framework from 31.0.1 to v31.0.3

• v111.1.29: fix(side-panels): Translate side panel titles

• v111.1.28: fix(conditions): Account for fixed dynamic header height when positioning conditions flyout

• v111.1.27: fix(dashboard): Handle errors that occur after successful document deletion

• v111.1.26: fix(teaser-preview): Fix include rendering

• v111.1.25: fix(info-panel): Hide incoming links from ticker entries

• v111.1.24: fix(field Extractor): return moved out of loop

• v111.1.23: chore(display-filters): Use start case for handle label fallback

• v111.1.22: fix(history): Overfetch revisions by one to check if more are available to load

• v111.1.21: fix(li-toolbar): avoid language label to overlap title

• v111.1.20: chore(tasks): Normalise task screen config within projectBehavior

• v111.1.19: fix(metadata): Do not include empty strings in etc payload

• v111.1.18: fix: Only make use large wide panels when ticker panel is closed

• v111.1.17: fix: hide display filters on media board with external sources

• v111.1.16: fix(info-panel): Only show print copies list when configured

• v111.1.15: fix(li-taser): only allow to transform into teasers allowed in container

• v111.1.14: fix(clipboard): keep clipboard visibility synced using watch

• v111.1.13: fix(multilist): Restore original scrolling behaviour and height

• v111.1.12: fix: Set li-canvas min-height

• v111.1.11: fix(li-task-item): use correct spacing for status icon when compact

• v111.1.10: fix(kordiam): Remove unnecessary optional chaining

• v111.1.9: fix: use workspace id in dataloader cache key

• v111.1.8: fix: Revert connecting local clipboard state to canvas clipboard state

• v111.1.7: chore(tasks): Add search empty text translation

• v111.1.6: fix(multiselect): add missing translations

• v111.1.5: fix(release-2024-11): Define release-2024-11 as channel for npm

• v111.1.4: fix: Postpone release-2024-11 dashboard breaking changes to release-2025-01

• v111.1.3: fix(user-avatar): icon size

• v111.1.2: fix(menu-item): increase max length

• v111.1.1: fix(release-2024-11): Update framework to v31.0.1 (release-2024-11 tag)

  ---

  Icon Legend

  • Breaking changes: 🔥
  • Feature: 🎁
  • Bugfix: 🪲
  • Chore: 🔧
