Metadata Plugin List

Overview

This overview contains a list of all metadata plugins provided by Livingdocs. Go to Metadata to get an overview of the metadata concept. You can create your own plugins in the downstream.

Metadata PluginMetadata Plugin TypeDescriptionUsage (D = Document, M = Media Library Entries, T = Table Dashboard, I = Includes, F = Display Filters)Default UI
Booleanli-booleanBooleanD, M, T, Icheckbox
Buy-Inli-buy-inBuy-in workflow timeline and actionsD, TPlaceholder for initial status
Colorli-colorColor CodeD, M, T, Itext
Categoryli-categorycategoryD, T, Fselect
Dateli-dateDateD, M, Idate input
Date/Time validityli-datetime-validityDateM2 date/time inputs
Date/Timeli-datetimeDateD, M, Idate/time input
Dependenciesli-dependenciesLivingdocs framework dependencies definitionDno UI
Desk-Net Integrationli-desknet-integrationDesk-Net IntegrationD, TLink to Desk-Net distribution entry
Desk-Net Scheduleli-desknet-scheduleDesk-Net ScheduleDPlatform/category select and date input
Document Referenceli-document-referenceA reference to another documentD, M, T, Idocument selection (dialog)
Document Referencesli-document-referencesA list of references to other documentsD, M, Idocument selection (dialog)
Enumli-enumstring from static list, validated on publishD, M, T, Iselect
Estimated Time Of Completionli-estimated-time-of-completionEstimated time of completion of a documentDbuttons to select Estimated Time of Completion from
External Idli-external-idid marker for an external systemD, M, Tselect
Document Target Lengthli-target-lengthTarget length in characters for a documentDnumber input or length slider
Google Visionli-google-visionGoogle Vision Autotagging for ImagesMspecialized UI, no config possible
Imageli-imageImagesD, MImage selection/upload/crops
Issue Managementli-issue-managementIssue ManagementDList of linked documents with actions to manage references
iMatricsli-imatrics-nlp-tagsiMatrics tag managementDmanage tags
Integerli-integerIntegerD, M, F, Inumber input
Languageli-languageLanguageDno Ui
Metadata Translationsli-metadata-translationsEnable metadata translationsD (data record only), Mtranslation UI
Named Cropsli-named-cropsDefault Crops for ImagesMcrop management UI
Numeric Listli-numeric-listArray of NumbersD, M, Imulti number input
Poster Imageli-poster-imagePoster Image for VideosM (Video)image selection
Publish Dateli-publish-dateHolds first publication date, user editableDdate/time input
Push Messagesli-push-messagesManages creation and storage of push messagesD, TTable Dashboard button launches dialog with input form
Reference Listli-reference-listMultiple references to other documentsD, Mdocument selection (dialog)
Referenceli-referenceA reference to another documentD, Mdocument selection (dialog)
Retrescoli-retrescoRetresco tag managementDmanage tags
String Listli-string-listArray of StringsD, M, T, Imultiselect
Stringli-textStringD, M, T, Itext, textarea, select
Teamli-teamShow user avatars associated with the documentD, Tteam in Metadata Form or dashboard
Treeli-treeTree with link, document, groupDtree
Transcoding Stateli-transcoding-stateState of external transcoding jobM (Video)trigger transcoding, current job progress, result
Video Referenceli-video-referenceA reference to a video (and a poster image)D, M, IUpload/Media Library Picker for a Video and a Poster Image

li-boolean

A simple checkbox which you can turn on/off.

If you want to have the field checked on during document creation, you can do that via defaultMetadata in your projectConfig.

Storage Format: Boolean
Default UI: checkbox
UI: Renders a checkbox

Project Config

metadata: [
  {
    type: 'li-boolean',
    config: {
      // common
      hideFromForm: false                      // optional, default: false
    }
    ui: {
      label: 'foo',                            // optional, takes camelized name otherwise
      config: {
        readOnly: true                         // optional, default: false
      }
    }
  }
]

li-buy-in

Added in: release-2023-03

Notice: The li-buy-in plugin is only available if the Planning System is enabled.

As part of the Planning System, users want to ask for buy-in when writing an article or pitching an idea. Other users can express their backing by accepting a buy-in request. The presence, absence or status of a buy-in request has no effect on permissions and is just a communication tool.

  • A buy-in request is closed after it was accepted or declined by one other person
  • Users cannot respond to their own buy-in requests
  • All other users with read and write permissions to the document can respond to a buy-in request
  • Buy-in requests can be answered by returning them to the creator, e.g. to clarify questions before accepting the request
  • Closed buy-in requests can be reopened an unlimited number of times
  • Buy-in requests can be answered directly from a Table Dashboard
  • Expired buy-in requests remain in their state, but may disappear from Table Dashboards (depends on config)
  • All own actions can be undone if no other action has occurred afterwards
  • All own comments can be edited, but will be marked as such

Storage Format:

{
  workflow: {
    status: <String>, // 'initial' | 'requested' | 'returned' | 'closed' | 'reopened'
    userId: <Integer>,
    expiryDate: <ISO8601 String>, // only set once requested
    timeline: [{
      eventType: <String>, // 'BuyInRequest' | 'BuyInReRequest' | 'BuyInAcceptance' | 'BuyInDeclining' | 'BuyInReturn' | 'BuyInReopen'
      userId: <Integer>,
      createdAt: <ISO8601 String>,
      updatedAt: <ISO8601 String>, // only set when edited
      comment: <String> // optional
    }]
  }
}

UI:

The li-buy-in plugin in initial status:

A screenshot of the li-buy-in plugin showing an empty state message, a comment field and a button to ask for buy-in.

The li-buy-in plugin in closed status:

A screenshot of the li-buy-in plugin showing the buy-in as accepted along with a comment and a button to reopen the request.

The li-buy-in plugin as a Table Dashboard cell in requested status:

A screenshot of a Table Dashboard where users can see the buy-in request details and can directly respond.

Project Config

Notice: Plugin needs to be configured with same handle on all relevant content types, otherwise data is lost when transforming content type, e.g. from pitch to article.

Content Type config:

metadata: [
  {
    type: 'li-buy-in',
    handle: 'buy-in',
    ui: {
      label: 'Buy-In'
    },
    config: {
      defaultExpiryDays: 5, // The default number of days before the request expires. Users can pick another date.
      index: true // Required for filters on Table Dashboard
    },
  }
]

Table Dashboard config:

baseFilters: [
  {type: 'buyInNotExpired', key: 'buyIn'}, // Only showing documents with non-expired buy-in requests
  {type: 'metadata', key: 'buyIn.workflow.status', value: 'requested'} // Additional status filter
],
columns: [
  {
    label: 'Buy-In',
    minWidth: 400, // Recommended min. width
    growFactor: 0,
    priority: 1,
    metadataPropertyName: 'buyIn',
    editable: true
  }
]

li-color

li-color will provide you with 2 settings (based on useInputTypeColor)

  • useInputTypeColor: true - color picker which stores the HEX color code
  • useInputTypeColor: false - text field where you have to enter the HEX color code (e.g. #8CBA51)

Storage Format: String
Default UI: text
UI: Renders a text element + color field


Project Config

metadata: [
  {
    handle: 'color',
    type: 'li-color',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value', // optional
      // specific
      translatable: true                       // optional, default: false, translations are only supported for data-record and mediaLibrary
    },
    ui: {
      label: 'your label',
      config: {
        useInputTypeColor: false,              // optional, default: true, shows a color picker
        readOnly: true,                        // optional, default: false
        placeholder: 'foo',                    // optional, takes camelized name otherwise
      }
    }
  }
]

li-category

Storage Format: {id: <String>, path: <String>}
Default UI: select with category tree view and search

li-date

Added in: release-2022-09 Storage Format: <ISO8601 String>
UI: Renders a date picker element

Project Config

metadata: [
  {
    handle: 'date',
    type: 'li-date',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value'  // optional
      translatable: false                      // optional, default: false
    },
    ui: {
      label: 'foo',                   // optional, takes camelized name otherwise
      config: {
        readOnly: true                // optional, default: false
      }
    }
  }
]

li-datetime-validity

Storage Format: {from: ISO8601 String, to: ISO8601 String}
Default UI: 2 date/time inputs (liMetaDateTimeValidityForm)

li-datetime

Storage Format: <ISO8601 String>
Default UI: 2 date/time inputs (liMetaDatetimeForm)
UI: Renders a date and time picker element


Project Config

metadata: [
  {
    handle: 'date',
    type: 'li-datetime',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value'  // optional
    },
    ui: {
      label: 'foo',                   // optional, takes camelized name otherwise
      config: {
        readOnly: true                // optional, default: false
      }
    }
  }
]

li-dependencies

Storage Format:

{
  js: [
    {
      src: <String>,
      code: <String>,
      inline: <Boolean>,
      library: <String>,
      namespace: <String>,
      componentIds: [
        <String>
      ]
    }
  ],
  css: [
    {
      src: <String>,
      code: <String>,
      inline: <Boolean>,
      library: <String>,
      namespace: <String>,
      componentIds: [
        <String>
      ]
    }
  ]
}

Default UI: no UI

li-desknet-integration

This plugin is used to connect Desk-Net stories with Livingdocs documents. There are numerous options available to synchronise data between the two platforms. Further details can be found in the Desk-Net Integration Guide.

Storage Format:

{
  id: <Integer>,
  publicationId: <Integer>,
  platformId: <Integer>,
  categoryId: <Integer>,
  publicationStatusId: <Integer> // Added in: release-2022-07
}

Default UI:

Document Metadata: Read-only link to Desk-Net distribution entry
Table Dashboard: Read-only Desk-Net publication/platform status

Project Config

metadata: [
  {
    handle: 'desknet',
    type: 'li-desknet-integration',
    config: {
      // Added in: release-2022-07
      publicationStatus: {
        fallbackPublicationStatusId: '2',
        // The order of matchers is important. The array is iterated through from first to last,
        // with the publicationStatusId taken from the earliest document state match.
        matchers: [
          {
            type: 'publication',
            value: 'published', // Only 'published' supported
            publicationStatusId: '5'
          },
          {
            type: 'task',
            taskName: 'proofreading',
            value: 'completed', // 'requested', 'accepted', 'completed'
            publicationStatusId: '4'
          },
          {
            type: 'metadata',
            propertyName: 'prepared',
            value: true, // <String>, <Number>, <Boolean>, <Array>, <Object>
            publicationStatusId: '3'
          }
        ]
      }
    },
    ui: {
      label: 'Desk-Net',
      config: {
        // Added in: release-2022-07
        publicationStatus: {
          labels: [
            {
              publicationStatusId: '5',
              label: 'Published',
              // optional, any SVG (ideally using viewBox)
              icon: '<svg viewBox="0 0 9 9" xmlns="http://www.w3.org/2000/svg"><path d="M0 0h9v9H0z"/></svg>',
              // optional, any CSS colour string
              color: '#f00'
            }
          ]
        }
      }
    }
  }
]

li-desknet-schedule

Added in: release-2022-09

This plugin will allow a user to select Desk-Net platforms and categories that they would like to view in the Desk-Net Schedule side panel. Once selected the Desk-Net button in the editor becomes active and the side panel can be opened. It is possible to lock the schedule to a specific date, as well as filter the Desk-Net stories that are displayed. Further details can be found in the Desk-Net Integration Guide.

Storage Format:

{
  platforms: [
    {
      platformId: <Integer>,
      categoryId: <Integer>
    }
  ],
  date: <ISO8601 String>
}

Default UI: Platform/category select and date input

Project Config

metadata: [
  {
    handle: 'desknetSchedule',
    type: 'li-desknet-schedule',
    config: {
      filters: {
        linkedDocumentsOnly: true,
        elementStatusIds: [1, 2, 10322, 10332],
        publicationStatusIds: [5]
      }),
      desknetExternalElementIdMetadataPath: 'myExternalSystem.id',
      automaticPlacementCreationFlowHandle: 'myDesknetGenerateContentFlow'
    },
    ui: {
      label: 'Desk-Net Schedule',
      config: {
        placeholder: 'Select a Desk-Net platform or category',
        useDashboard: 'articlesSimple'
      }
    }
  }
]

li-document-reference

Added in: release-2022-03

A li-document-reference metadata field shows a reference to another document. To select a document one gets provided a Document Selection Modal.

Storage Format:

{
  reference: {
    id: <String>
  }
}

Default UI: Document Selection (Dialog) (liMetaReferenceForm)


Project Config

// contentType[].metadata / mediaType[].metadata
metadata: [
  {
    handle: 'reference',
    type: 'li-document-reference',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value', // optional
      // specific
      documentType: 'article',                 // optional, one of article, page, data-record
      contentType: 'my-content-type',          // optional, filters the document selection
      published: true,                         // optional, shorthand for publication displayFilter, default: false
    },
    ui: {
      label: 'foo',                  // optional, takes camelized name otherwise
      config: {
        style: 'default',            // optional, defaults to 'default'. Other options: 'teaser'
        useDashboard: '',            // optional, reference to a custom dashboard
        baseFilters: [],             // optional, invisible filters and applied to every search (including the default result list)
        displayFilters: [],          // optional, filters that the user can set in the UI (below the search input)
      }
    }
  }
]

References:

li-document-references

Added in: release-2022-11

A li-document-references metadata field is a list of references to other documents. A Document Selection Dialog is shown, based on shorthand queries and useDashboard to select documents.

Storage Format:

{
  $ref: 'documents',
  references: [{
    id: <String>
  }]
}

Default UI: Document Selection (Dialog) (liMetaReferenceForm)


Project Config

// contentType[].metadata / mediaType[].metadata
metadata: [
  {
    handle: 'references',
    type: 'li-document-references',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value', // optional
      // specific
      documentType: 'article',                 // optional, one of article, page, data-record
      contentType: 'my-content-type',          // optional, filters the document selection
      published: true,                         // optional, shorthand for publication baseFilter, default: false
    },
    ui: {
      label: 'foo',                  // optional, takes camelized name otherwise
      config: {
        // style: 'default' -> default for metadata
        // style: 'teaser' -> default for include paramsSchema
        style: 'default',
        useDashboard: '',            // optional, reference to a custom dashboard
        baseFilters: [],             // optional, invisible filters and applied to every search (including the default result list)
        displayFilters: [],          // optional, filters that the user can set in the UI (below the search input)
      }
    }
  }
]

References:

li-estimated-time-of-completion

Added in: release-2023-03

The Estimated Time of Completion Metadata Plugin li-estimated-time-of-completion enables a user to set an estimated time of completion for the current document. The plugin is available in the Metadata Form.

Notice: The li-estimated-time-of-completion plugin is only available if the Planning System is enabled.

Storage Format:

{
  date: <ISO8601 String>,   // for a single date
  after: <ISO8601 String>,  // for a date range - start date
  before: <ISO8601 String>, // for a date range - end date
  precision: <String>       // enum: ['date', 'datetime'] - is the date above saved as date or datetime
}

Default UI

Metadata Form:

Estimated Time of Completion Metadata Plugin buttons Estimated Time of Completion Metadata Plugin single date Estimated Time of Completion Metadata Plugin date range

Project Config

Content Type config:

metadata: [
  {
    handle: 'estimatedTimeOfCompletion',
    type: 'li-estimated-time-of-completion',
    config: {
      // common
      hideFromForm: false,                      // optional, default: false
      required: false,                          // optional, default: false
      requiredErrorMessage: 'Provide a value',  // optional
    },
    ui: {
      label: 'Ready for publication',           // optional, takes camelized name otherwise
      config: {
        readOnly: false,                        // optional, default: false
      }
    }
  }
]

li-enum

A li-enum metadata field shows a select form based on a statically defined list. On publish the selected value gets validated against the defined static list. With that you can assure that only specific values gets published.

Storage Format: <String>
Default UI: select


Project Config

// contentType[].metadata / mediaType[].metadata
metadata: [
  {
    handle: 'tags',
    type: 'li-enum',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value', // optional
      // specific
      dataProvider: {                          // required
        type: 'labelValuePair',                // required
        items: [
          {label: 'Tag A', value: 'a'},
          {label: 'Tag B', value: 'b', isDefault: true}, // isDefault sets the value if document opened the first time
          {label: 'Tag C', value: 'c'}
        ]
      }
    },
    ui: {
      label: 'foo',                   // optional, takes camelized name otherwise
      config: {
        readOnly: true,               // optional, default: false
        placeholder: 'foo'           // optional, takes camelized name otherwise
      }
    }
  }
]

li-external-id

Added in: release-2022-07

A li-external-id metadata field can be used to save an external id of another system. For example if you want to have an article reference to your original system. At the moment li-external-id has no UI and can only be set via the public API import.

Storage Format: <String>
Default UI: no UI
Project Config

// contentType[].metadata / mediaType[].metadata
metadata: [
  {
    handle: 'externalId',
    type: 'li-external-id',
    config: {
      // no config values are allowed
    },
    ui: {
      // no ui config values are allowed
    }
  }
]

li-document-soft-lock

Storage Format:

{
  userId: <Integer>,
  userName: <String>,
  locktime: <ISO8601 String>,
  tabId: <String>
}

Default UI: no UI

li-google-vision

Storage Format: {}
Default UI: specialed UI in the Media Library Image Detail View, no config possible

li-image

Storage Format:

{
  originalUrl: <String>,
  url: <String>,
  mediaId: <String>,
  height: <Integer>,
  width: <Integer>,
  mimeType: <String>,
  imageService: <String>,
  crops: [
    <Object>
  ],
  focalPoint: {
    x: <Integer>,
    y: <Integer>
  }
}

Default UI: UI to select/upload/delete/crop an image (liMetaImageForm)

li-issue-management

Added in: release-2022-09

Default UI: List of linked documents with actions to manage references

The li-issue-management metadata plugin can be used to manage issues (a data-record with references to pages).

Issue management overview

Note: The status of pages and articles does not update automatically. Please refresh the page to get an up-to-date overview.

Issue management plugin:

  • Page status, article count and status
  • Create and add new pages
  • Open pages
  • View and open page articles
  • Remove pages (this will not delete the page, only remove the reference from this issue)
  • Disable / enable a page reference for this issue
  • Change order of pages

Issue navigation:

  • Navigate between the issue and its pages
  • Summary status of page and its articles
Issue management page view

The issue navigation is also visible when navigating to a page that belongs to an issue.

The issue navigation can only show one issue at a time. If a page is connected to two issues then only the first issue will be shown in the issue navigation.

When a contentType (in this example a “page”) is a member of an issue, then then all the “Un-/Publish” buttons in the publish control will be named “Release/Withdraw”. See Project Config below.

Issue management view articles

See and open articles of the selected page.

Issue management remove page

Removing a page reference has to be confirmed in a second step, to prevent accidental removal.

Storage Format

{
  "$ref": "documents",
  "references": [
    {
      "id": "359",
      "inactive": true
    },
    {
      "id": "358"
    }
  ]
}

Project Config

Project config Root:

The finiteProducts config array describes the available finite products (issues). Each issue issueContentType can have a different set of member contentTypes issueMemberContentTypes.

{
  ...
  finiteProducts: [{
    issueContentType: 'issue',
    issueMemberContentTypes: ['page']
  }].
  ...
}

Issue contentType:

Each li-issue-management metadata plugin presents an issue-group inside an issue.

{
  handle: 'issue',
  documentType: 'data-record',
  ...
  metadata: [
    {
      handle: 'local',
      type: 'li-issue-management',
      config: {index: true}, // Needed to find a parent issue of a page. If a parent issue is found for a page, then the page will be shown with an issue navigation on top.
      ui: {
        label: 'Local',
        config: {
          documentCreationFlows: [{
            useDocumentCreationFlow: 'digitaleAusgabePage' // document creation flow function to call, when the "add page" button is clicked - see https://docs.livingdocs.io/guides/editor/document-creation-flow/#goal
          }]
        }
      }
    },
    {
      handle: 'sport',
      type: 'li-issue-management',
      ...
    },
  ]
}

li-imatrics-nlp-tags

Storage Format:

{
  contentVersion: <String>,
  concepts: [
    {
      weight: <Number>,
      title: <String>,
      slug: <String>,
      type: <String>,
      uuid: <String>,
      inappropriate: <Boolean>,
      userAdded: <Boolean>
    }
  ]
}

Default UI: manage tags, add new tag suggestions (liMetaIMatricsForm)

li-integer

Storage Format: <Integer>
Default UI: number input
UI:

  • Renders a number input.
  • No UI is rendered if the handle is lastProofreadRevision.
  • With release-2023-03: Renders a select element if a dataProvider is configured

Project Config

metadata: [
  {
    handle: 'integer',
    type: 'li-integer',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value', // optional
      // specific
      minValue: 1,                             // optional
      maxValue: 50,                             // optional
      translatable: true,                      // optional, default: false, translations are only supported for data-record and mediaLibrary
      dataProvider: {                          // optional, added in release-2023-03
        // Option 1 - list of items
        type: 'labelValuePair',
        items: [
          {label: 'A', value: 1},
          {label: 'B', value: 2, isDefault: true}, // isDefault sets the value if document opened the first time
          {label: 'C', value: 3}
        ]
        // Option 2 - DataSource
        dataSource: 'labelValuePairDataSource'
      }
    },
    ui: {
      label: 'foo',                   // optional, takes camelized name otherwise
      config: {
        placeholder: 'bar',           // optional, takes camelized name otherwise
        readOnly: true                // optional, default: false
      }
    }
  }
]

li-language

When adding li-language, it allows a user to translate articles and pages into different languages. Additionally you need to enable translationWorkflow and requiredOnCreation.

Data Records also support translations, but need to add the metadata plugin li-metadata-translations.

Storage Format:

{
  locale: <String>,
  label: <String>,
  groupId: <String>
}

Default UI: no UI
Project Config

metadata: [
  {
    handle: 'language',
    type: 'li-language'
  }
]

li-metadata-translations

When adding li-metadata-translations, it allows a user to translate metadata into different languages. Metadata translations are supported for the Media Library and Data Records.

Storage Format: {locale: <String>}
Default UI: translation UI image

Project Config

// contentType[].metadata / mediaType[].metadata
metadata: [
  {
    handle: 'language',
    type: 'li-metadata-translations',
    ui: {
      component: 'liMetaSelectForm',
      service: 'languageSelection'
    }
  }
]

li-named-crops

Storage Format:

{
  crops: [
    {
      name: <String>,
      x: <Integer>,
      y: <Integer>,
      width: <Integer>,
      height: <Integer>,
      isAutomatic: <Boolean>
    }
  ],
  focalPoint: {
    x: <Integer>,
    y: <Integer>
  }
}

Default UI: crop management (liMetaNamedCropsForm)

li-numeric-list

Storage Format: [<Number>]
Default UI: input for multiple numbers (liMetaNumericList)

Numeric List Example

Project Config

metadata: [
  {
    handle: 'otherIds',
    type: 'li-numeric-list',
    config: {
      // common
      required: true,                                   // optional, default: false
      requiredErrorMessage: 'Custom required message',  // optional
      // specific
      maxItems: 5,                                      // optional
    },
    ui: {
      label: 'foo',                   // optional, takes camelized name otherwise
      config: {
        placeholder: 'bar',           // optional, takes capitalized handle name otherwise
        readOnly: true                // optional, default: false
      }
    }
  }
]

li-poster-image

Storage Format:

{
  originalUrl: <String>,
  url: <String>,
  mediaId: <String>,
  height: <Integer>,
  width: <Integer>,
  mimeType: <String>,
  imageService: <String>,
  crops: [
    {
      name: <String>,
      x: <Integer>,
      y: <Integer>,
      width: <Integer>,
      height: <Integer>,
      isAutomatic: <Boolean>
    }
  ]
}

Default UI: Poster Image selection, has some special UI within Video Media Library Entries (liMetaPosterImageForm)

li-publish-date

Storage Format: <ISO8601 String>
Default UI: date/time input (liMetaDatetimeForm)

li-push-messages

Added in: release-2022-11

As an alternative to the existing Push Notifications feature, we introduced the more flexible li-push-messages metadata plugin.

Use Push Messages if you like to send messages directly from Table Dashboards and if you need a flexible message format.

Use Push Notifications if you need to send notifications directly from the Editor Toolbar or if you’d like to use a predefined push service like Google Firebase.

The two features may be merged in the future, but for now they co-exist independently.

Push NotificationsPush Messages
Accessed fromEditor Toolbar ActionTable Dashboards
Push ServicesGoogle Firebase, Urban airship, EthinkingCustom Implementation
Message FormatFixed (Message + Topic)Dynamic (Params Schema)

Notice: Push Messages can only be sent on published documents. If the document is not published, the Table Dashboard won’t show the button.

Storage Format:

{
  messages: [{
    id: <String>,
    sentAt: <ISO8601 String>,
    userId: <Number>,
    params: <Object>
  }]
}

Default UI: Push messages dialog launched from Table Dashboard

Push Messages on Table Dashboard Push Messages Dialog Form

Project Config

Content Type config:

metadata: [
  {
    type: 'li-push-messages',
    handle: 'myPushMessages',             // Name of the metadata field
    ui: {
      label: 'Push Me'                    // Optional, controls button label on Table Dashboards
    },
    config: {
      paramsSchema: [                     // Defines schema of message object
        {
          type: 'li-text',                // One of: li-text, li-boolean, li-integer, li-date, li-datetime
          handle: 'messageText',          // Property name on message object
          config: {                       // Config based on type (li-text here)
            required: true,
            maxLength: 120,
            recommendedMaxLength: 100
          }
        }
      ],
      handlerName: 'myPushMessageHandler' // Optional, name of the registered function to send the message
    }
  }
]

Table Dashboard config:

columns: [
  ...,
  {
    label: 'My push messages',
    metadataPropertyName: 'myPushMessages',
    minWidth: 70,
    growFactor: 1,
    priority: 1
  }
]

Custom function

The li-push-messages metadata plugin handles everything regarding the user interface and saves the messages to the database. But it does not actually send push messages anywhere. Instead, it lets you register your own function to do that job.

  • Register Push Message handler after server initialization
  • Handler function can be async, returned value will be ignored
  • Push Message will not be saved if handler throws an error

Example configuration from Livingdocs server boilerplate:

module.exports = function (liServer) {
  // Register function after server initialization
  liServer.registerInitializedHook(async function () {

    const log = liServer.log.child({ns: 'push-messages-hooks'})
    const pushMessagesApi = liServer.features.api('li-documents').pushMessages

    pushMessagesApi.registerPushMessageHandler({
      // Name must be unique across projects
      name: 'myPushMessageHandler',

      /**
       * @async
       * @param {object} args
       * @param {object} args.projectConfig
       * @param {number} args.userId
       * @param {string} args.documentId
       * @param {string} args.metadataPropertyName
       * @param {string} args.pushMessageId - Id the push message will have
       * @param {object} args.params - The message object, following paramsSchema
       * @return {Promise<void>}
       */
      async handler (args) {
        log.info(
          `Handling push message for metadata property name "${args.metadataPropertyName}"`
        )
      }
    })
  })
}

li-reference-list

With release-2022-11 this is superseeded by li-document-references.

Storage Format:

{
  $ref: 'documents',
  references: [{
    id: <String>
  }]
}

Default UI: Document Selection (Dialog) (liMetaReferenceForm)

li-reference

A li-reference metadata field shows a reference to another document. To select a document one gets provided a Document Selection Modal. If you don’t want to use the prefillAuthor property, use li-document-reference.

Storage Format:

{
  $ref: 'document',
  reference: {
    id: <String>
  }
}

Default UI: Document Selection (Dialog) (liMetaReferenceForm)


Project Config

metadata: [
  {
    handle: 'reference',
    type: 'li-reference',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value', // optional
      // specific
      documentType: 'data-record',             // optional
      contentType: 'author',                   // optional
      prefillAuthor: true                      // optional, default: false
      published: true,                         // optional, shorthand for publication baseFilter, default: false
    },
    ui: {
      label: 'foo',                            // optional, takes camelized name otherwise
      config: {
        displayFilters: ['timeRange']
      }
    }
  }
]

References:

li-retresco

Storage Format:

{
  contentVersion: <String>,
  entities: [{
    id: <String>,
    type: <String>,
    name: <String>,
    score: <Number>,
    inappropriate: <Boolean>,
    userAdded: <Boolean>
  }]
}

Default UI: Retresco tag management (liMetaRetrescoForm)

Please see the Retresco integration guide for details on how to setup the integration.

li-string-list

Storage Format: Array of Strings
Default UI: Multiselect

Needs a dataProvider to work.

Project Config

// contentType[].metadata / mediaType[].metadata
metadata: [
  {
    handle: 'myStringList',
    type: 'li-string-list',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value', // optional
      // specific
      dataProvider: { // required
        // Option 1 - list of items
        type: 'labelValuePair',
        items: [
          {label: 'Item A', value: 'a'},
          {label: 'Item B', value: 'b', isDefault: true}, // isDefault sets the value if document opened the first time
          {label: 'Item C', value: 'c'}
        ]
        // Option 2 - DataSource
        dataSource: 'labelValuePairDataSource'
      }
    },
    ui: {
      label: 'foo', // optional, takes camelized name otherwise
      config: {
        readOnly: true, // optional, default: false
      }
    }
  }
]

li-target-length

Storage Format: {characters: <Number>}
Default UI: Number input (LiMetaTargetLengthForm)

Doesn’t work if the editor config metadata.useAngularBasedFormRendering is true.

Project Config

// contentType[].metadata / mediaType[].metadata
metadata: [
  {
    handle: 'targetLength',
    type: 'li-target-length',
    // optional, allows picking a step instead of entering an exact number
    ui: {
      config: {
        acceptedCharacterDifference: 20, // Range above and below `value` considered accepted
        steps: [
          {
            label: 'S', // use a short one, e.g. "S" "M" "L"
            value: 100 // number of characters
          },
          {
            label: 'M',
            value: 200
          }
        ],
        // optional, allows the input of an exact number besides picking a step
        allowAnyNumber: true
      }
    }
  }
]

Default UI: Difference, Total Characters, Target Range, Characters in Focussed Component

Target Length Indicator

li-text

Storage Format: String
Default UI: text input, textarea, select
UI:

  • Renders a select element if a dataProvider is configured
  • With release-2022-09: Renders an autogrowing reasonably sized textarea otherwise
  • Before release-2022-09: Renders a textarea if ui.component is set to LiMetaFormTextarea
  • Before release-2022-09: Renders a text input otherwise

Project Config

metadata: [
  {
    handle: 'title',
    type: 'li-text',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value', // optional
      // specific
      minLength: 100,                          // optional, added in release-2022-09

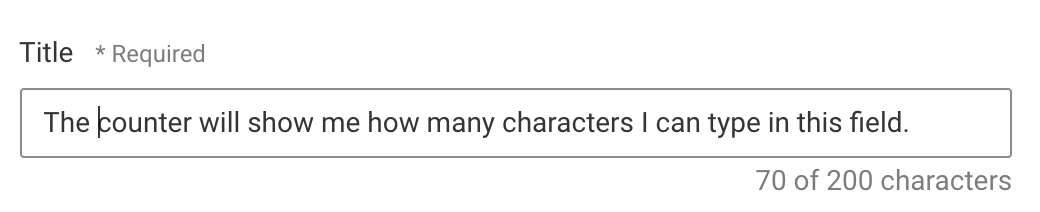

      maxLength: 200,                          // optional
      recommendedMinLength: 110,               // optional, added in release-2022-09
      recommendedMaxLength: 150,               // optional, added in release-2022-09
      allowNewlines: false,                    // default: undefined, added in release-2022-09, validated if set. Effect on ui: newlines are stripped uf not true and ui.config.rows is undefined and ui.component is not liMetaTextareaForm
      useAsTitle: true,                        // Will be removed in release-2023-07, migrate to displayTitlePattern
      translatable: true,                      // optional, default: false, translations are only supported for data-record and mediaLibrary
      dataProvider: {                          // optional
        // Option 1 - list of items
        type: 'labelValuePair',
        items: [
          {label: 'Item A', value: 'a'},
          {label: 'Item B', value: 'b', isDefault: true}, // isDefault sets the value if document opened the first time
          {label: 'Item C', value: 'c'}
        ]
        // Option 2 - DataSource
        dataSource: 'labelValuePairDataSource'
      }
    },
    ui: {
      label: 'foo',                   // optional, takes camelized name otherwise
      config: {
        placeholder: 'bar',           // optional, takes camelized name otherwise
        readOnly: true,               // optional, default: false
        rows: 10                      // optional, only applicable for LiMetaFormTextarea, integer, 5 by default
      }
    }
  }
]

li-team

Added in: release-2023-03

The team metadata plugin li-team enables a user to associate other users with the current document by adding or removing them from the teams plugin. Additionally one user can be marked as the owner. The owner can not be removed from the team. The plugin is available in the Metadata Form and the Table Dashboard.

Notice: The li-team plugin is only available if the Planning System is enabled.

Storage Format:

{
  // 'id' and '*By' keys are always user ids
  owner: {
    id: <Number>,
    assignedAt: <ISO8601 String>,
    assignedBy: <Number>
  },
  activeUsers: {
    id: <Number>,
    addedAt: <ISO8601 String>,
    addedBy: <Number>
  },
  inactiveUsers: ms.arrayOf(ms.strictObj({
    id: <Number>,
    addedAt: <ISO8601 String>,
    addedBy: <Number>,
    removedAt: <ISO8601 String>,
    removedBy: <Number>'
  }))
}

Default UI

Metadata Form:

Team plugin in the meta data

Dashboard:

Team plugin in the Table Dashboard

Project Config

Content Type config:

metadata: [
  {
    handle: 'myTeam',
    type: 'li-team',
    config: {
      // common
      hideFromForm: false,                      // optional, default: false
      required: false,                          // optional, default: false
      requiredErrorMessage: 'Provide a value',  // optional
    },
    ui: {
      label: 'My Team',                         // optional, takes camelized name otherwise
      config: {
        readOnly: false,                        // optional, default: false
      }
    }
  }
]

Table Dashboard config:

columns: [
  ...,
  {
    label: 'Team',
    metadataPropertyName: 'myTeam',
    editable: true,
    minWidth: 200,
    growFactor: 1,
    priority: 2
  }
]

li-tree

Added in: release-2022-09

The plugin li-tree lets you set up a tree with items of the 3 possible types group, link, document.

  • group -> a structural item without a link, just a label
  • link -> link to an external URL
  • document -> link to another Livingdocs document

Storage Format

// schweiz -> link
//   zürich -> link
//   bern -> document
// deutschland -> group
//   hamburg -> link
//   berlin -> document
[
  {
    id: 'menu-schweiz',
    label: 'Schweiz',
    type: 'link',
    href: '/schweiz',
    items: [
      {
        id: 'menu-zuerich',
        label: 'Zürich',
        type: 'link',
        href: '/zuerich'
      },
      {
        id: 'menu-bern',
        label: 'Bern',
        type: 'document',
        reference: {
          id: '42'
        }
      }
    ]
  },
  {
    id: 'menu-deutschland',
    label: 'Deutschland',
    type: 'group',
    items: [
      {
        id: 'menu-hamburg',
        label: 'Hamburg',
        type: 'link',
        href: '/hamburg'
      },
      {
        id: 'menu-berlin',
        label: 'Berlin',
        type: 'document',
        reference: {
          id: '991'
        }
      }
    ]
  }
]

Default UI: tree
UI: The main view lets you structure the menu. The detail let’s you edit one menu entry
Project Config

metadata: [
  {
    handle: 'tree',
    type: 'li-tree',
    config: {
      // common
      hideFromForm: false,                          // optional, default: false
      required: true,                               // optional, default: false
      requiredErrorMessage: 'Provide a value',      // optional
      // specific
      maxDepth: 3,                                  // default: undefined | tree depth
      allowedTypes: ['group', 'document', 'link'],  // default: ['group', 'document', 'link']

      // settings for document link
      document: {
        contentType: ['regular'],                   // default: all   | only be able to link contentType 'regular' | string or array of strings
        published: true                             // default: false | only be able to link published document
      }
    },
    ui: {
      label: 'foo',                                 // optional, takes camelized name otherwise
      config: {
        readOnly: true,                             // optional, default: false

        document: {                                 // define a Dashboard with filters
          useDashboard: 'my-dashboard',             //   reference to a custom dashboard
          baseFilters: [],                          //   https://docs.livingdocs.io/customising/advanced/editor-configuration/base-filter/
          displayFilters: []                        //   https://docs.livingdocs.io/customising/advanced/editor-configuration/display-filter/
        }
      }
    }
  }
]

li-transcoding-state

Storage Format:

{
  commands: [{
    assetKey: <String>,
    commandId: <String>,
    createdAt: <String>,
    state: <String>,
    errorMessage: <String>,
    progress: <Number>
  }],
  transcodings: [{
    assetKey: <String>
  }]
}

Default UI: UI to trigger transcodings, see progress and the result in the end

  • With release-2022-11: Renders a default UI and no longer accepts a ui.component option

Project Config

metadata: [
  {
    handle: 'transcoding',
    type: 'li-transcoding-state',
    ui: {
      label: 'My Transcoding'     // optional, takes "Transcoding State" otherwise
    }
  }
]

li-video-reference

Added in: release-2022-03

A li-video-reference metadata field shows a list of video references where one entry can be selected. Optionally a customer poster image can be defined. li-video-reference is only supported property in includes.

Storage Format:

{
  $ref: 'video',
  reference: {
    id: <String>,
    posterImageId: <String>
  }
}

Default UI: Video & Poster Image Upload/Media Library Selection


Config

paramsSchema: [
  {
    handle: 'video',
    type: 'li-video-reference',
    config: {
      // common
      hideFromForm: false,                     // optional, default: false
      required: true,                          // optional, default: false
      requiredErrorMessage: 'Provide a value', // optional
      // specific
      translatable: true,                      // optional, default: false, translations are only supported for data-record and mediaLibrary
    },
    ui: {
      config: {
        posterImageUploadMediaType: 'image2',  // optional, default: 'image'
      }
    }
  }
]
