li-push-messages

Supported Features

Document
Media
Include
Document Creation Flow
Push Message
Table Dashboard
Display Filter
Search Indexing
System Metadata

Description

Push Messages has been introduced as an alternative to the existing Push Notifications feature, which will soon be removed.

The Push Messages feature enables a user to send messages directly from Table Dashboards, and from the article editor (Added in: release-2023-11), with a customisable message format.

The two features may be merged in the future, but for now they co-exist independently.

Push NotificationsPush Messages
Accessed fromEditor Toolbar ActionEditor Toolbar Action (Added in: release-2023-11), Table Dashboards
Push ServicesGoogle Firebase, Urban airship, EthinkingCustom Implementation
Message FormatFixed (Message + Topic)Dynamic (Params Schema)

Notice: Push Messages can only be sent on published documents. If the document is not published, the Table Dashboard won’t show the button.

Default UI

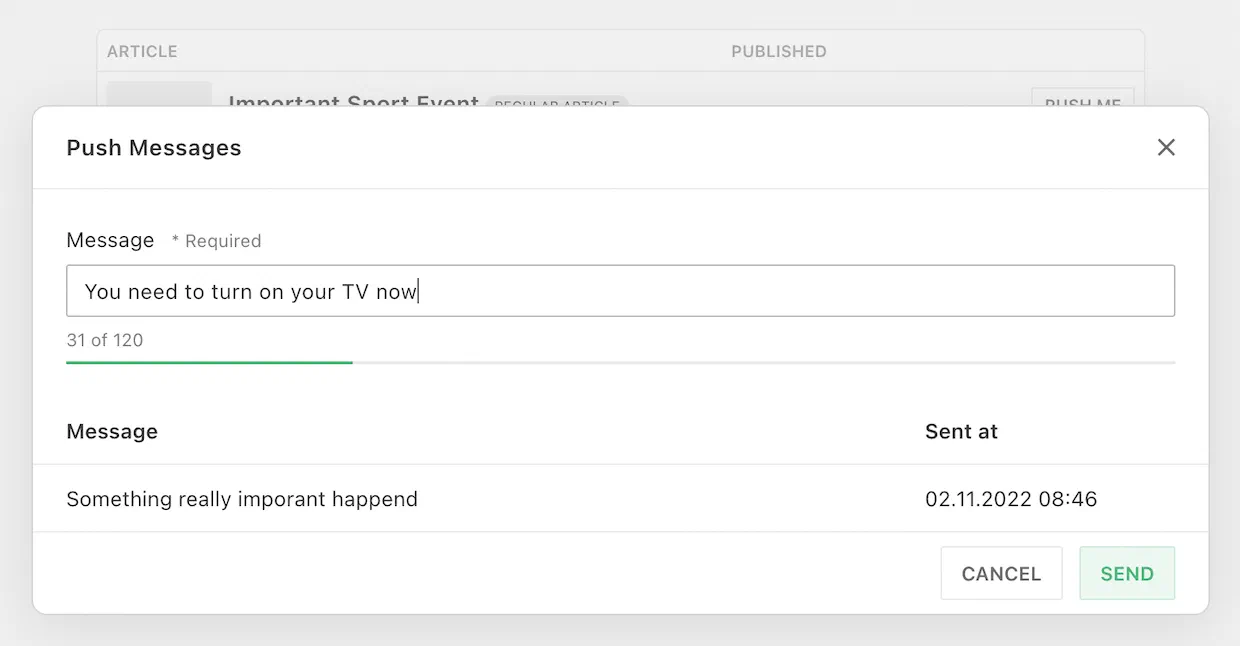

Push messages dialog launched from Table Dashboard

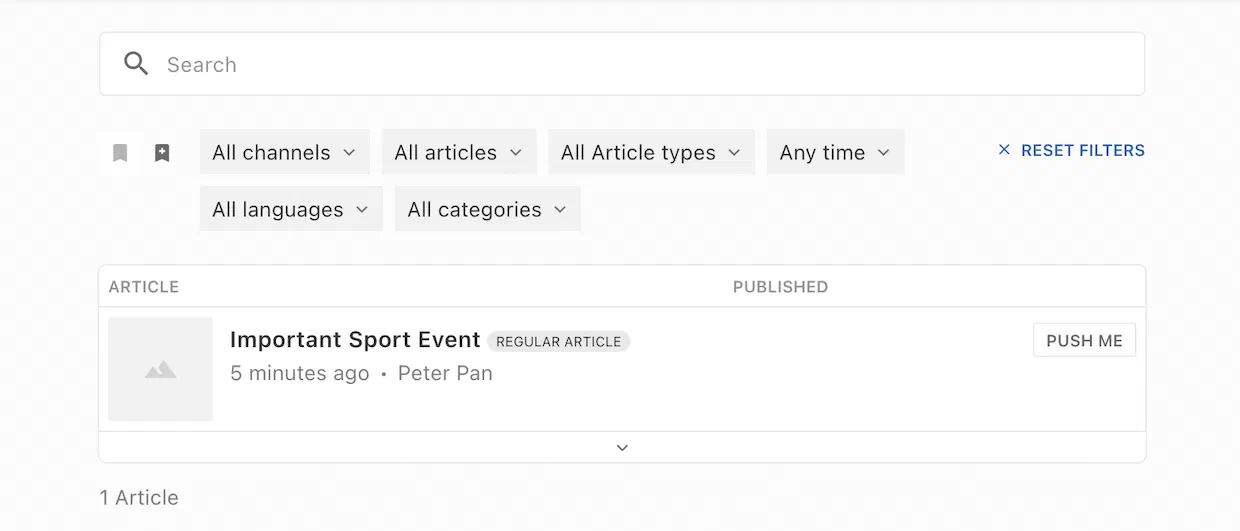

Push Messages on Table Dashboard Push Messages Dialog Form

Storage Format

{
  messages: [
    {
      id: <String>,
      sentAt: <ISO8601 String>,
      userId: <Number>,
      params: <Object>
    }
  ]
}

Content Type Config

{
  handle: 'myContentType',
  // ...
  metadata: [
    {
      handle: 'myHandle'
      type: 'li-push-messages',
      config: {
        paramsSchema: [                     // Defines schema of message object
          {
            type: 'li-text',                // One of: li-text, li-boolean, li-integer, li-date, li-datetime, li-string-list
            handle: 'messageText',          // Property name on message object
            config: {                       // Config based on type (li-text here)
              required: true,
              maxLength: 120,
              recommendedMaxLength: 100
            }
          }
        ],
        handlerName: 'myPushMessageHandler' // Optional, name of the registered function to send the message
      },
      ui: {
        label: 'Push Me'                    // Optional, controls button label on Table Dashboards
      }
    }
    // ...
  ]
}

Table Dashboard Config

{
  handle: 'myDashboard',
  // ...
  columns: [
    // ...
    {
      label: 'My push messages',
      metadataPropertyName: 'myPushMessages',
      minWidth: 70,
      growFactor: 1,
      priority: 1
    }
  ]
}

Additional Config

Custom Function

The li-push-messages metadata plugin handles everything regarding the user interface and saves the messages to the database. But it does not actually send push messages anywhere. Instead, it lets you register your own function to do that job.

  • Register Push Message handler after server initialization
  • Handler function can be async, returned value will be ignored
  • Push Message will not be saved if handler throws an error
module.exports = function (liServer) {
  // Register function after server initialization
  liServer.registerInitializedHook(async function () {

    const log = liServer.log.child({ns: 'push-messages-hooks'})
    const pushMessagesApi = liServer.features.api('li-documents').pushMessages

    pushMessagesApi.registerPushMessageHandler({
      // Name must be unique across projects
      name: 'myPushMessageHandler',

      /**
      * @async
      * @param {object} args
      * @param {object} args.projectConfig
      * @param {number} args.userId
      * @param {string} args.documentId
      * @param {string} args.metadataPropertyName
      * @param {string} args.pushMessageId - Id the push message will have
      * @param {object} args.params - The message object, following paramsSchema
      * @return {Promise<void>}
      */
      async handler (args) {
        log.info(
          `Handling push message for metadata property name "${args.metadataPropertyName}"`
        )
      }
    })
  })
}
